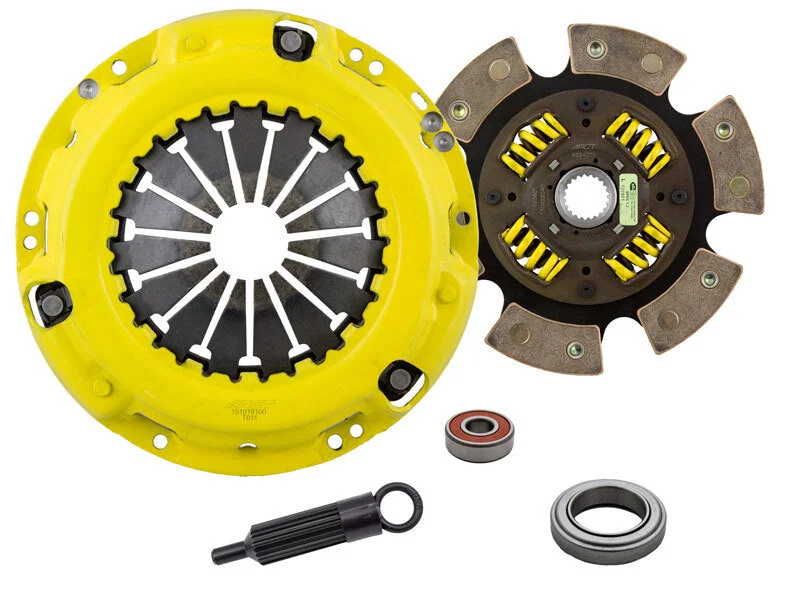

ACT TC3-HDG6 – 1971 Toyota Corona HD/Race Sprung 6 Pad Clutch Kit

Description

ACT TC3-HDG6 – 1971 Toyota Corona HD/Race Sprung 6 Pad Clutch Kit

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit

HD/Race Sprung 6 Pad

TC3-HDG6 kit features ACT’s most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Pressure Plate Type: Heavy DutyRelease Bearing Included: YesClutch Disc Diameter: 8.8Clutch Disc Diameter: 224Disc Material: CeramicInput Spline Quantity: 21Input Shaft Diameter: 1.125Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: NoGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: YesClutch Master Cylinder Included: NoProduct Weight (lbs.): 14.8Torque Capacity (ft/lbs.): 355Torque Capacity Over OE: 89%Flywheel Included: NoPilot Bushing Included: No
