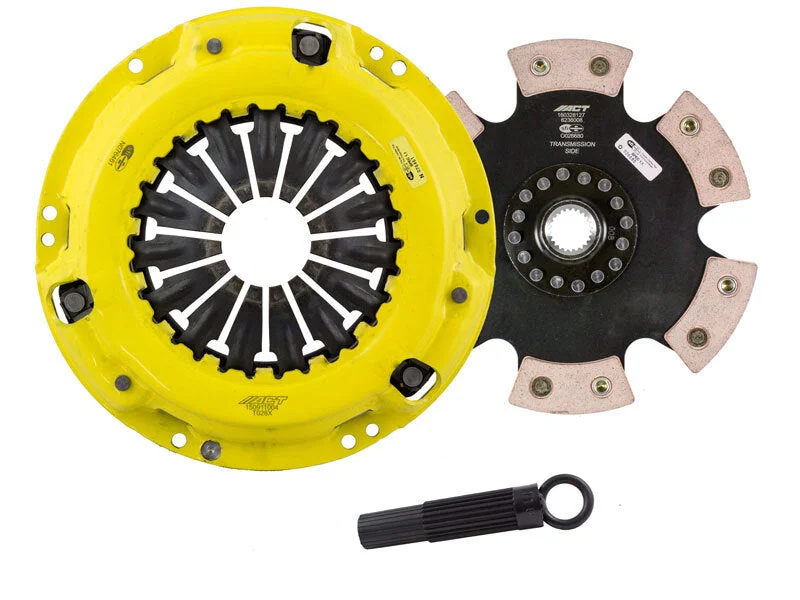

ACT TC8-XTR6 – 2013 Scion tC XT/Race Rigid 6 Pad Clutch Kit

Description

ACT TC8-XTR6 – 2013 Scion tC XT/Race Rigid 6 Pad Clutch Kit

ACT Extreme Race Rigid 6 Pad Clutch Kit

XT/Race Rigid 6 Pad

TC8-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Product Weight (lbs.): 13.4Torque Capacity (ft/lbs.): 500Torque Capacity Over OE: 106%Flywheel Included: NoPilot Bushing Included: NoPressure Plate Type: XtremeRelease Bearing Included: NoClutch Disc Diameter: 9.3Clutch Disc Diameter: 236Disc Material: CeramicInput Spline Quantity: 23Input Shaft Diameter: 1Alignment Tool Included: YesDisc Type Sprung Solid: SolidPressure Plate Bolts Included: NoGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: NoClutch Master Cylinder Included: No
