Action Clutch ACR-1727 – 08-15 Scion xB 2.4L (2AZFE) Stage 3 Clutch Kit (1MS)

Description

Action Clutch ACR-1727 – 08-15 Scion xB 2.4L (2AZFE) Stage 3 Clutch Kit (1MS)

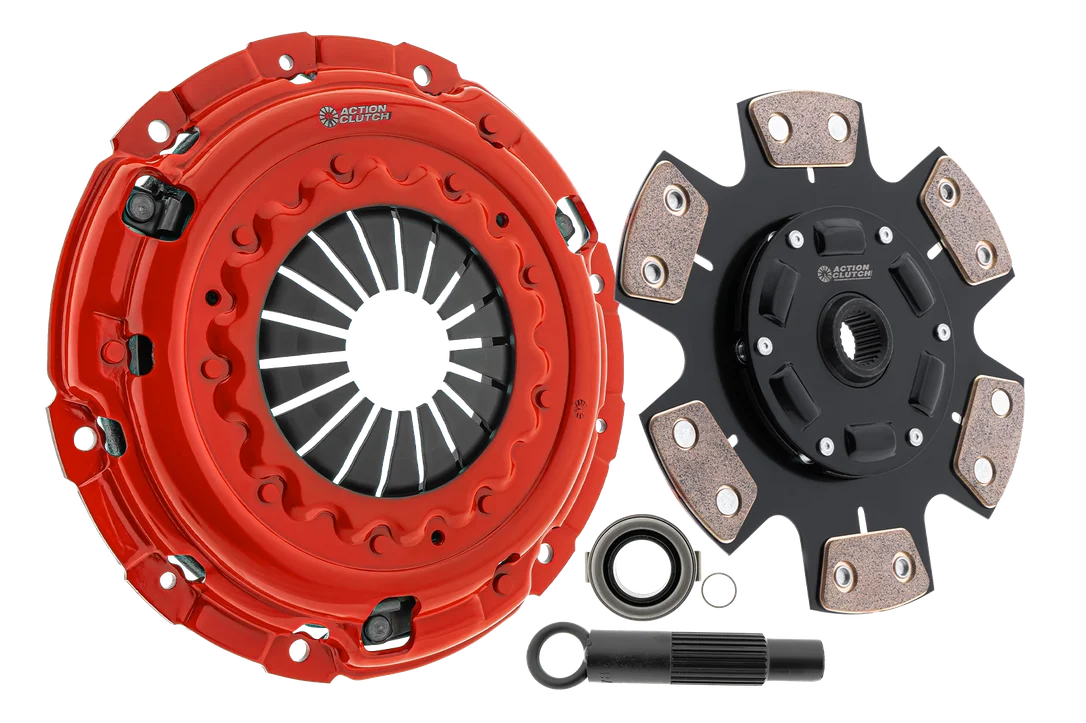

Stage 3 Clutch Kit (1MS) for Scion xB 2008-2015 2.4L (2AZFE)

Action Clutch’s Stage 3 (1MS) Clutch Kit is designed to withstand even the most challenging conditions. Featuring a heavy-duty single diaphragm pressure plate, reinforced drive straps, and a Sprung MIBA Ceramic (available in a 4 or 6 puck) disc, this kit provides peak performance and extreme durability for low/mild horsepower vehicles. Our Sprung MIBA Ceramic clutch kit provides quicker engagement and will introduce some clutch chatter, which will minimize after proper break-in. For those looking to take their vehicles to the next level, the Stage 3 (1MS) Action Clutch Kit provides maximum control and power with little compromise on reliability. At Action Clutch, safety is our top priority. We understand how catastrophic engine or transmission damage can be caused by springs popping out which is why we use our patented, fully enclosed spring retainers to keep your investment protected at all times. Every kit is quality checked by one of our experienced engineers (with over 60 years of collective experience) and signed off as safe before being released as a finished product. This gives you peace of mind knowing that your Action Clutch will perform consistently every time. 170% INCREASED HOLDING CAPACITY OVER FACTORY KIT HEAVY-DUTY STREET USE AND OCCASIONAL DRAG / ROAD / DRIFT RACING

Alignment Tool Included: YesRelease Style: Conventional Release BearingClutch Disk Spline Diameter: 1 1/8Clutch Disk Diameter: 235Alignment Tool Model: AT71Release Bearing Model: RB-0215Pressure Plate Model: TYC572HD 6.5KN RClutch Disk Model: ACR-CB6-235 1 1/8X21T-NOSE DOWN-SBreak-in Care: 500 street miles. Keep RPM’s under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.Disclaimer: Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Increase in holding capacity is rated in Crank Torque, not Wheel TorquePackage Contents: Sprung MIBA Ceramic 6 Puck DiscCounterweight Assist: NoClutch Kit Type: Stage 3 Clutch Kit (1MS)Spring Cover Included: YesRelease Bearing Included: YesPilot Bearing Included: YesMounting Hardware Included: NoFlywheel Included: NoFriction Material: MetallicClutch Disk Spline Count: 21
